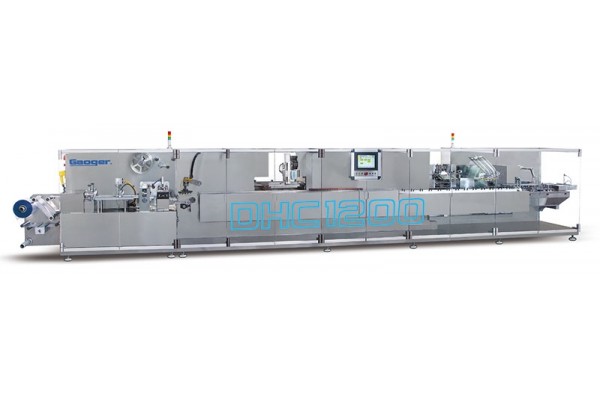

DHC1200 Vials Blister Packing and Cartoning Packaging Line

Product Description

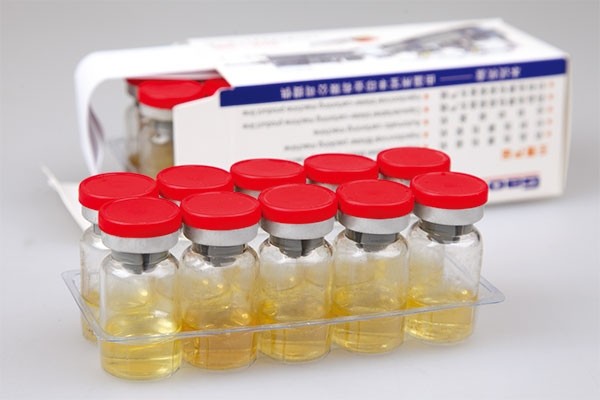

DHC-1200 Blister and cartoning Produce line is the first domestic packaging speed more than 1000 bottles / minute ,suitable for various types of vials intelligent automatic blister packing and vertical cartoning.

Excellent operational performance and efficient product output

High-efficiency feeding system

Modular design of the mold, with quick change function

Suspension structure , meets with the structure of the human body engineering, with Intelligent interface

Easy to clean and clear, with smooth surface and no dead angle.

Technical parameters

Max Output :	≤120cartons/min   ≤1200 bottles/min
Max Forming area and depth:	245 x 130 x 35mm
Leaflet size	(100-200)x(100-150)mm
Leaflet material	50-70g/m2
Carton size	(65-200)x(25-60)x(15-60)mm
Carton material	250-350g/m2
Power:	380V 50Hz 8Kw(200V, 60Hz)
Air compressor:	0.6-0.8Mpa  >= 0.8m3/min
Weight:	4500kg
