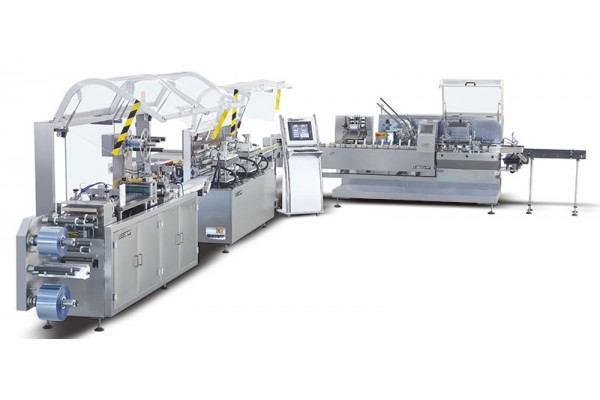

DHC-800 Vials Blister Packing and Cartoning Packaging Line

Product Description

Feature:

The packaging line for Ampoule/vials blister packing and cartoning.

Adopts advanced human-machine interface,independent of PLC control and alarm system to ensure normal operation.Electrical components adopts OMRON,SMC,Leybold and other well-known brands.

Adopts modular design,replacement of different specifications of the mold, fast and convenient.

Technical parameters

Max Output：	≤80 cartons/min  ≤800 bottles/min
Max Forming area and depth:	245×130×35mm
Leaflet size :	（100-200）×（100-150）mm
Carton material:	250-350g/m2
Carton Size:	（65-200）×（25-80）×（15-60）mm
Leaflet material:	50-70g/m2
Air compressor	0.6-0.8/Mpa≥0.8m3/min
Power	380V 50HZ 8Kw(220V, 60Hz)
Weight	4500kg
